1.5*0.10mm Ultra Fine Flat Enameled Copper Wire

Name: 15010mm Ultra Fine Flat Enameled Copper Wire
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : Class 220

Certification : IEC/NEMA/JIS/RoHS/ISO

Place of Origin : China

MOQ : Different types with differet MOQ

Price : Negotiation

Payment Terms : Negotiation, T/T

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Item : 1.5*0.10mm Ultra Fine Flat Enameled Copper Wire

Width : 1.5mm

Product Name : 1.5*0.10mm Ultra Fine Flat Enameled Copper Wire

Product Category : Rectangular Copper Wire

Applications : Audio

Thickness : 0.1mm

Material : Copper

Key word : 1.5*0.10mm Ultra Fine Flat Enameled Copper Wire

Contact Now

1.5.0*0.10mm Ultra Fine Flat Enameled Copper Wire

Our ultra-fine enameled flat copper wire, designed to meet the stringent requirements of modern electrical applications. This rectangular enamelled copper wire is 1.5 mm wide and only 0.1 mm thick and is designed for optimal performance in transformer windings and other critical electrical components. The unique low-profile design allows for efficient space utilization, making it ideal for applications where size and weight are critical. Not only are our enamelled flat wires lightweight, they also offer excellent solderability, ensuring seamless integration into your project.

Item		conductor dimension		Unilateral insulation layer thickness		Overall dimension		Dielectric breakdown voltage	Conductor resistance	Elongation
Item		Thickness	Width	Thickness	Width	Thickness	Width	Dielectric breakdown voltage	Conductor resistance	Elongation
Unit		mm	mm	mm	mm	mm	mm	kv	Ω/km 20℃	%
SPEC	AVE	0.100	1.500	0.025	0.025
	Max	0.109	1.560	0.040	0.040	0.150	1.600		124.770
	Min	0.091	1.440	0.010	0.010			0.700		30
No. 1		0.101	1.537	0.021	0.012	0.143	1.560	1.320	120.540	42
No. 2								1.850
No. 3								1.360
No. 4								2.520
No. 5								2.001
No. 6
No. 7
No. 8
No. 9
No. 10
Avg		0.101	1.537	0.021	0.012	0.143	1.560	1.810
Number of reading		1	1	1	1	1	1	5
Min. reading		0.101	1.537	0.021	0.012	0.143	1.560	1.320
Max. reading		0.101	1.537	0.021	0.012	0.143	1.560	2.520
Range		0.000	0.000	0.000	0.000	0.000	0.000	1.200
Result		OK	OK	OK	OK	OK	OK	OK	OK	OK

Product Tags:

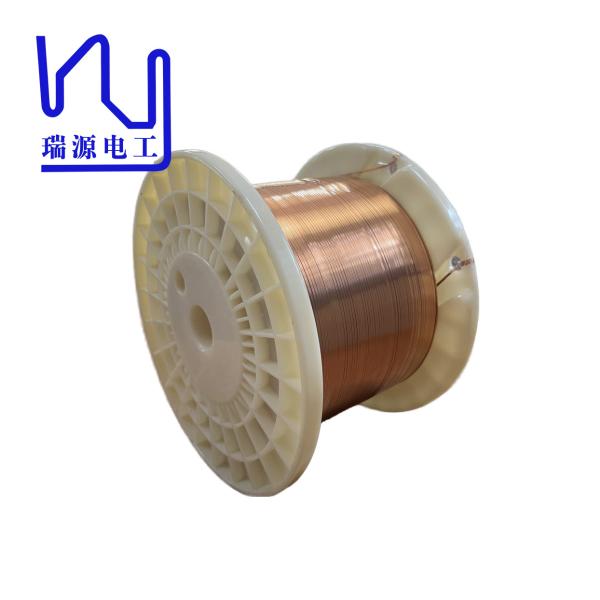

1.5*0.10mm Ultra Fine Flat Enameled Copper Wire Images
